Multi Functional Robot Building Kit for Arduino | STEM Educational Kit
Multi Functional Robot Building Kit for Arduino | STEM Educational Kit - Image 2
STEM KitKit Included

Multi Functional Robot Building Kit for Arduino | STEM Educational Kit

100+ Projects

Learn the fundamentals of robotics with our arduino UNO robotics Kit. Get hands-on experience on coding and robotics to build robots like line follower robot, object follower robot, cliff avoidance robot, voice controlled robot, bluetooth controlled robot and many more.

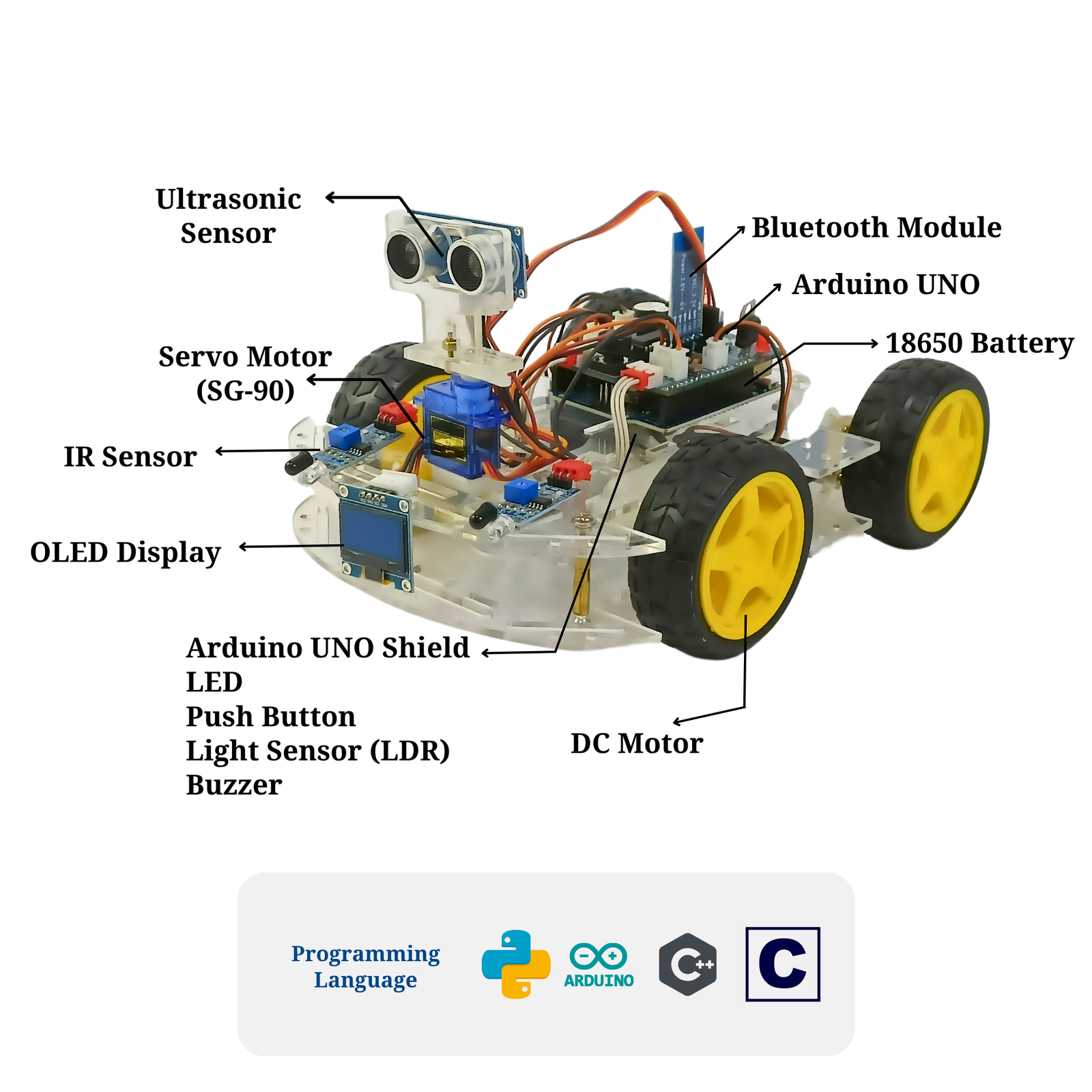

What’s in the box?

Arduino UNO * 1
Arduino Shield * 1
Light Sensor (LDR) * 2
Push Button * 1
LED * 1
Buzzer * 1
Bluetooth Module * 1
OLED Display * 1
IR Sensor * 2
Ultrasonic Sensor * 1
DC Geared Motor * 4
Motor Driver L293D * 1
Servo Motor * 1
Acrylic Chassis * 1
Nuts and Bolts
Wheels * 4
Battery 18650 (chargeable) *3
Battery Holder * 1
Cables
Kit User Manual (Digital)

₹4,499.00

Inclusive of GST. Free shipping across India.

1 Year Warranty
Free Shipping
Secure Checkout
Category

Description

Projects

S.No Activity Name Short Description
Basic Activity
1 LED BLINKING LED ON-OFF with a delay
2 DOOR BELL Using push button to turn on the buzzer
3 LED GLOW WITH PUSH BUTTON Control LED with switch in different modes
4 DISCO LIGHT Glow multiple color of RGB LED
5 LED BRIGHTNESS CONTROL LED brightness control using potentiometer
6 VOLUME CONTROL Buzzer volume control using potentiometer
7 DISPLAY YOUR NAME Display the name in OLED display
8 VOLTAGE & VALUE DEFLECTION Measure the analog pin voltage and value using potentiometer
9 CONTROL SERVO ANGLE Control servo angle with potentiometer
10 TRAFFIC LIGHT Glow red, green and yellow in every 10 second using RGB LED
11 BURGLAR ALARM Using IR sensor and buzzer to detect the presence of burglar
Intermediate Level Activity
11 BLACK AND WHITE DETECTOR IR sensor and servo motor to segregate white & black color
12 AUTOMATED STREET LIGHT In darkness LED will turn ON and in day light led will turn OFF
13 INDICATE & DISPLAY DAY-NIGHT Using LDR sensor to indiate day with green and night with red display in OLED display
14 DISTANCE MEASUREMENT Using ultrasonic sensor to calculate the distance and display in OLED display
15 CAR PARKING Detect distance and beep the buzzer if distance less than 50 cm
16 AUTOMATIC DOOR Using IR sensor to detect any object infront of door and the door will be open through the servo motor and after 10 second door is closed automatically
17 NOTICE BOARD Scrolling string data in OLED display
18 COUNT OBJECT If any object is detect infront of ir sensor count, blink led, beep buzzer and display on OLED
19 FACIAL EXPRESSION GENERATION Display facial expression on OLED display
20 RADAR system Ultrasonic sensor detecting the object and it distance in 180 degree using servo motor
21 AUTOMATIC SOLAR PANEL Detecting the direction of sun using LDR sensor and revolving the solar panel using servo motor
22 LINE FOLLOWER ROBOT Using IR sensors to detect the line and use L293D to control the direction of robot
23 OBJECT FOLLOWER ROBOT Using IR sensors to detect the object and use L293D to control the direction of robot to follow that object
24 OBSTACLE AVOIDANCE ROBOT Using IR sensors to detect the object and use L293D to control the direction of robot to avoid that object
25 CLIFF AVOIDANCE ROBOT Using IR sensors to detect the cliff and use L293D to control the direction of robot to avoid the cliff
Advance Level & Application Base Activity
26 POWER SAVER Using LDR sensor when light is ON the led is glow and light off LED not glow
27 EYE PROTECTION Using ultrasonic sensor when object detect less the 35cm then the buzzer start beeping
28 BLIND STICK Detecting the obstacle using ultrasonic sensor and alarming using the buzzer
29 BUS SAFETY SYSTEM Close the door once robot starts moving to avoid any accidents
30 ACCIDENT ALERT SYSTEM Detect the accident and generate a sound using buzzer
31 SMART DUSTBIN Detect the intention to open the dustbin using ultrasonic sensor and servo motor to open the bin
32 PET FEEDER Set a timer and turn on the feeded using servo motor to feed your pet
33 AUTOMATIC RAILWAY CROSSING Close the crossing using servo motor when a train is passing
34 SNAKE GAME Push button and OLED display using arduino
35 VOLUME CONTROL BAR Using the potentiometre to control the volume of the buzzer and OLED to display the volume bar to see percentage 0 to 100.
36 JUMPING JACK GAME Push button and OLED display using arduino
37 BLUETOOTH CONTROLLED ROBOT Use HC05 bluetooth module to wireless control of the robot using mobile App
38 VOICE CONTROLLED ROBOT Use HC05 bluetooth module to wireless control of the robot using voice through mobile App
39 AUTONOMOUS ROBOT Using ultrasonic sensor and servo motor to drive the robot autonomously
40 MAZE SOLVING ROBOT Using ultrasonic sensor, IR sensors and servo motor to solve the maze autonomously
